Slide-on Weather-Proof Boots for RF Coaxial Cable Assemblies

For outdoor applications, RF Industries offers factory terminated coaxial cable assemblies with slide-on weather-proof boots. The boots are pre installed on the assembly and feature quick and easy slide-on over the mated connectors. The installed boot provides weather-proof protection from the elements that meets IP68 standards. The boots are ideal for situations that require the connection to be removed in the future.

Features & Benefits

UV resistant silicone rubber
Soft and flexible
Easy slide on and off
Water-proof to IP68
Reusable

Availability

Slide on weather proof boots come pre-installed on the following types of cable assemblies:

½ inch flexible and super-flexible corrugated cables with 7-16 DIN, 4.3-10 and N type male connectors
¼ inch corrugated cables with 4.3-10 and N type male connectors

Cable assemblies are available with various brands of cables terminated with RF Industries brand connectors. Assemblies are built to order in the United States for quick delivery. PIM testing is available with results downloadable with the PIM Tracker™ application.

Inquire with your RF Industries distributor or sales contact for specific configurations and quote. Contact Us

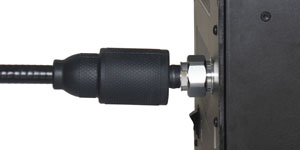

Step 1 Mate connectors

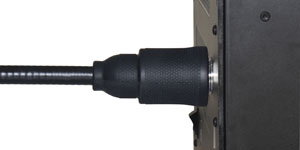

Step 2 Slide the Boot over the mated connectors

Assemblies	Available Connector and Cable Combinations
	7-16 DIN ½ inch cable
	4.3-10 ½ inch cable
	N ½ inch cable
	4.3-10 ¼ inch cable
	N ¼ inch cable

In our constant effort to provide competitively priced, quality products, we reserve the right to change specifications without prior notice. Please contact sales to verify that published specifications are current.

PIM Tracker is a trademark of RF Industries
